JK5000 Multi-Channel Temperature Data Logger 7 inch TFT LCD Screen Resolution 0.01℃ Measuring Range -200～1800℃ Temperature Tester (JK5000-8(8 Channels))
4.0 (47 items)
Limited Time SaleUS$359.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211153953 | Release Date | 2026/04/04 | List Price | US$239.60 | Model Number | 211153953 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

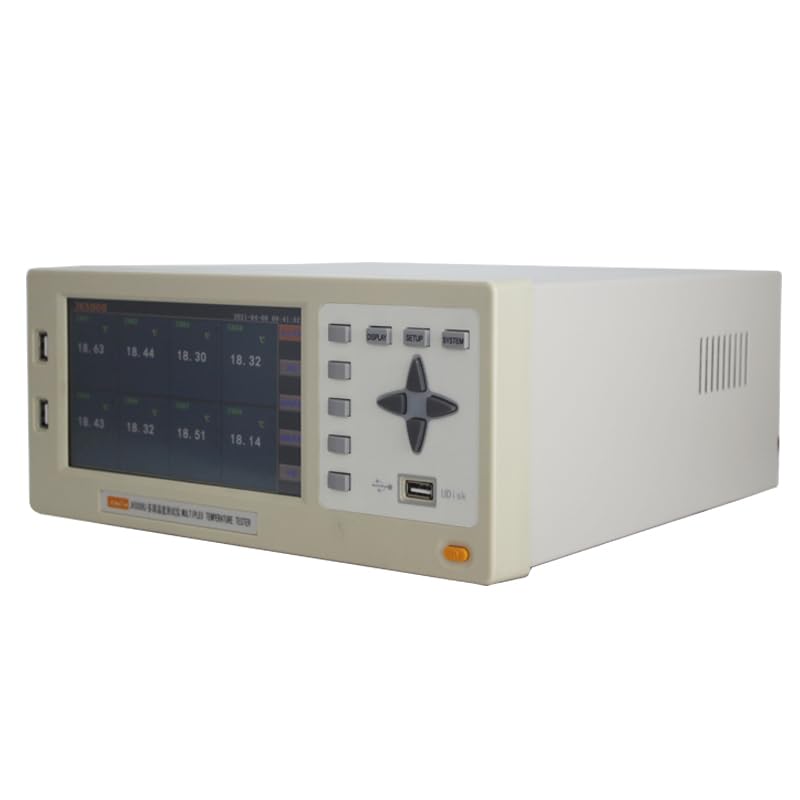

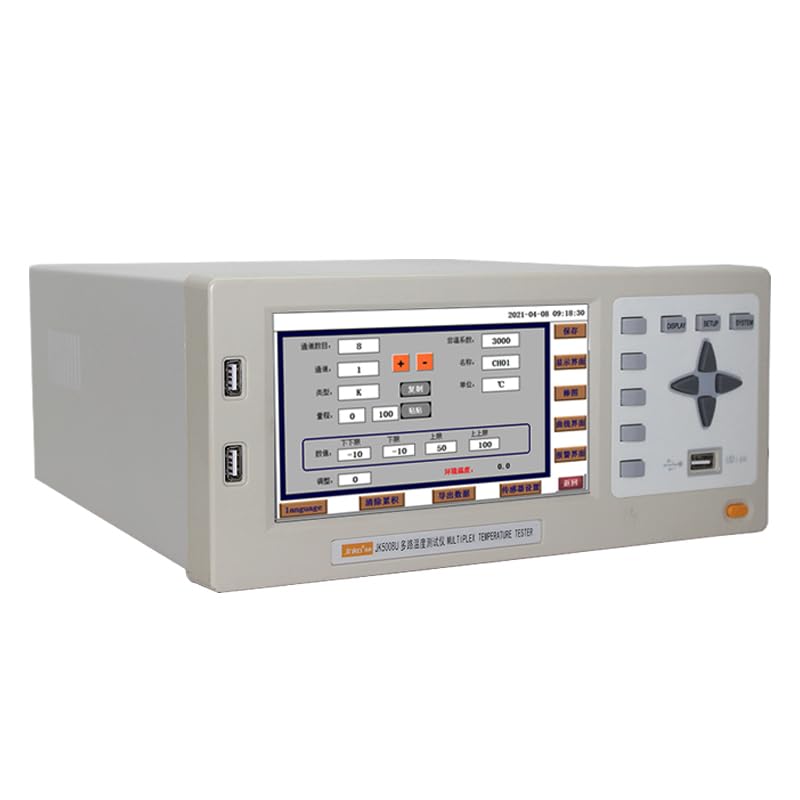

JK5000 utilizes a high-performance ARM microprocessor and features a 7-inch high-brightness true color LCD screen with full touch control. It offers a fully Chinese interface and operation manual, displaying measurement data and real-time graphs instantly. The temperature measurement resolution is enhanced to 0.01°C, supporting thermocouple types K, J, E, T, N, S, B, and R. Equipped with a comparator function, the instrument outputs 10-channel non-conformity signals and can directly drive power relays and signal relays.
- JK5000 adopts high-performance ARM microprocessor, 7-inch high-brightness true color LCD screen, full touch operation, Chinese and English operation interface and operation instructions, real-time display of measurement data and graphs. The test temperature resolution is improved to 0.01℃. Thermocouple model: K, J, E, T, N, S, B and R type. At the same time, in order to be applied to live applications, the instrument adopts a high-voltage isolation circuit, the main control unit and the interface unit can withstand 300VAC, and the allowable voltage between channels can withstand 300VDC.
- There is a 4G large-capacity data buffer inside the instrument for real-time recording of data. The instrument supports 4 USB2.0 host interfaces. The instrument has a comparator function, outputs 10 channels of unqualified signals, and can directly drive power relays and signal relays. The instrument has a built-in LAN interface, RS-232C interface and USB232 interface can be effectively used for remote control and data acquisition and analysis.
- Resolution:0.01℃;Recording interval:1S-24h can be set arbitrarily;Storage:Built-in 4G storage, U disk storage (U disk needs to be purchased separately)
- Alarm function:Set upper upper limit, upper limit, low limit, low low limit;Temperature compensation:Support for each channel;Interface:RS232 WIFI communication
- Power supply:AC 65V-240V，DC 24V Lithium battery power supply (optional)
| Manufacturer | Jinko |
|---|---|
| Item model number | JK5000-8(8 channels) |
