JK2830 LCR Meter 50Hz-100kHz with 34 Frequency Points

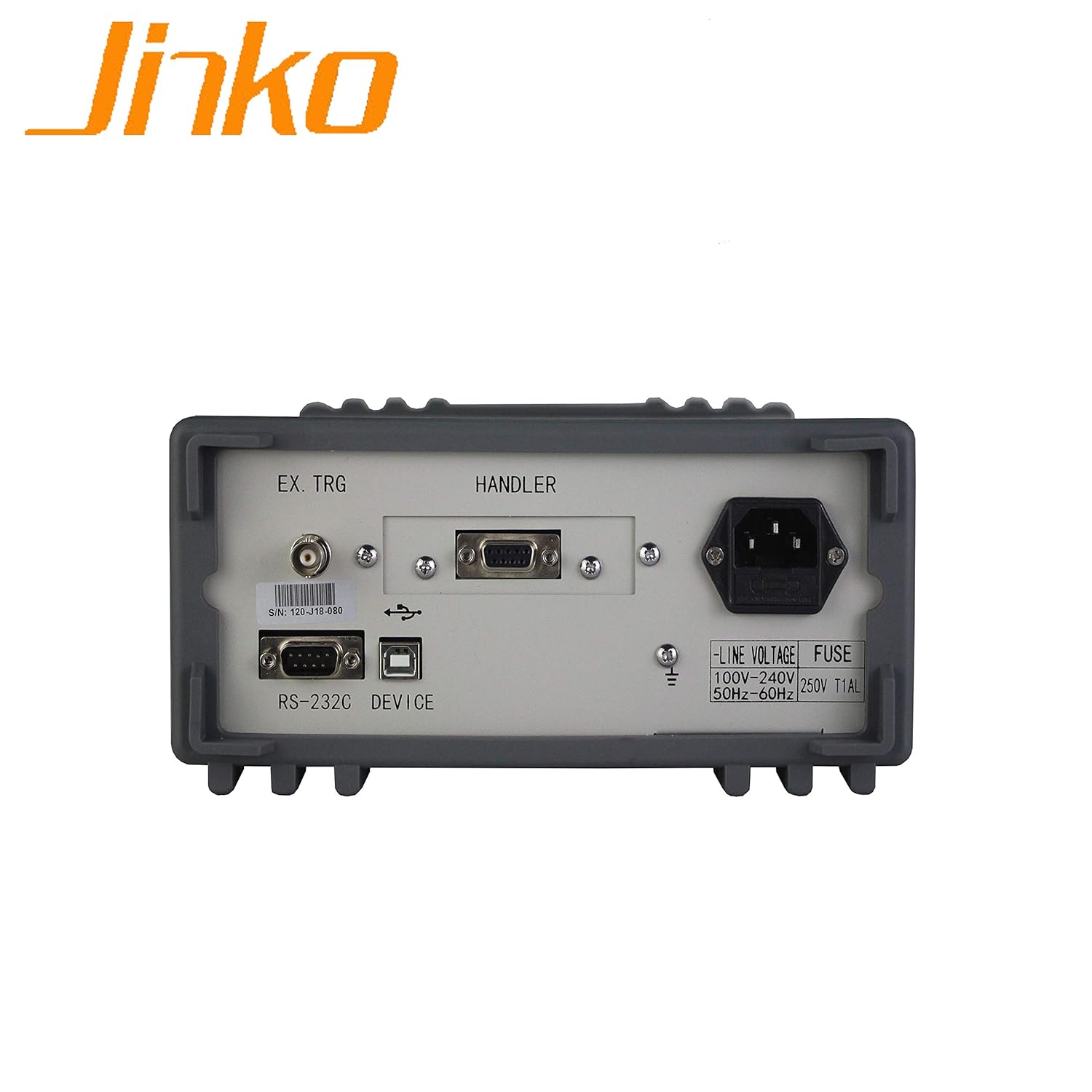

Brief introduction ■JK2830 is a new generation of low cost, high-performance and compact LCR digital bridge. Using the latest technology and high density circuit design, it concentrates the essence of the large LCR tester, compact and compact.Abolish the traditional mechanical power switch and use software to control the power switch.0.05% basic accuracy and good test stability can be comparable to high-end models.Equipped with 4.3 inch LCD display and new upgraded interface system. Beautiful and easy to operate.The instrument provides a rich interface and is compatible with the standard SCPI instruction. It can easily form various testing systems to meet the needs of inspection, production and scientific research. Performance characteristics ■ Low cost, high performance, small volume LCR tester ■ 4.3 inch TFT LCD display ■ Soft power switch ■ Optional operating interface in English and Chinese ■ Maximum 200kHz test frequency ■ 6 bit readings resolution ■ 10mVrms-2.0Vrms Programmable test level。Built-in 0- + 5V/50mA bias source ■ DCR Test function,50mV-2V,Programmable test level, resolution 10mΩ ■ Ls-Rd/Lp-Rd function (L, Rd is displayed simultaneously) ■ Maximum test speed 13ms/ times ■ 30Ω、100Ω signal source impedance ■ Voltage and current monitoring and automatic level adjustment function ■ Built-in comparator, 10 gear sorting and counting function ■ It supports U disk file storage and can be upgraded by U disk. ■ RS232,RS485,USB,HANDLER,GPIB interface
